Build and Deploy

Build and Deploy#

Build Setup#

The build instructions in the documentation are tested for a native Linux Machine. For MacOS or Windows consider creating a docker container build. One of the developers uses the following devcontainer.json build environment:

{
  "name": "Ubuntu",
  "image": "mcr.microsoft.com/devcontainers/base:jammy",
  "features": {
              "ghcr.io/devcontainers/features/docker-in-docker:2": {},
              "ghcr.io/devcontainers/features/docker-outside-of-docker:1": {}
       },
  "runArgs": [
    "--cap-add=NET_ADMIN",
    "--cap-add=MKNOD",
    "--device=/dev/net/tun",
    "--sysctl=net.ipv6.conf.all.disable_ipv6=0",
    "--sysctl=net.ipv6.conf.default.disable_ipv6=0"
  ],
  "postCreateCommand": "apt-get update && apt-get install -y iproute2 && echo 'IPv6 is enabled.'",
  "remoteUser": "root"
}

Before you we start with any development here are a few things you should get configured:

  • Get the Zephyr SDK downloaded and configured in your root directory. You can find the instructions here.

  • Setup a virtual environment for the project.

host:~$ sudo apt update && sudo apt upgrade
host:~$ sudo apt install python3-pip python3.10-venv
host:~$ python3.10 -m venv venv
host:~$ source venv/bin/activate
host:~$ pip install --upgrade pip && pip install west
host:~$ mkdir workspace && cd workspace
host:~/workspace$ west init -m https://github.com/jonas-rem/flownexus --mr main
host:~/workspace$ west update

Container Environment#

Both components run in a Docker container. The Leshan server is running in a openjdk:17-slim container and the Django server is running in a python:3.11-slim container. This allows for an easy and reproducible setup of the server.

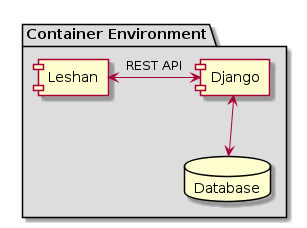

@startuml package "Docker Compose Environment" #DDDDDD { [Leshan] as Leshan [Django] as Django database "Database" as DB Leshan <-right-> Django : REST API Django <-down-> DB } @enduml

Both components running in one machine using Docker Compose#

The following diagram shows the Docker Compose environment. The file docker-compose.yml defines the services and their configuration. The file Dockerfile.leshan defines the Leshan container and the file Dockerfile.django defines the Django container.

Warning

Make sure to change the password to the admin console as well as other settings like SECRET_KEY, DEBUG flag in a production environment!

The container can be build and started with the following commands:

host:~/workspace/flownexus/server$ docker compose build
[+] Building 0.5s (20/20) FINISHED                               docker:default
 => [leshan internal] load build definition from Dockerfile.leshan         0.0s
 => [leshan internal] load metadata for docker.io/library/openjdk:17-slim  0.4s
 => [django internal] load build definition from Dockerfile.django         0.0s
 => [django internal] load metadata for docker.io/library/python:3.11-sli  0.4s
 => [leshan 1/5] FROM docker.io/library/openjdk:17-slim@sha256:aaa3b3cb27  0.0s
 => [django 1/5] FROM docker.io/library/python:3.11-slim@sha256:d11b9bd5e  0.0s
 => CACHED [leshan 2/5] WORKDIR /leshan                                    0.0s
 => CACHED [leshan 3/5] COPY . /leshan/                                    0.0s
 => CACHED [leshan 4/5] RUN apt-get update &&     apt-get install -y mave  0.0s
 => CACHED [leshan 5/5] RUN chmod +x /leshan/leshan_build_run.sh           0.0s
 => => exporting layers                                                    0.0s
 => => writing image sha256:a017577ba2b175374148f5c3f128ac117ba5436ceaeff  0.0s
 => => naming to docker.io/library/server-leshan                           0.0s
 => CACHED [django 2/5] WORKDIR /django                                    0.0s
 => CACHED [django 3/5] COPY . /django/                                    0.0s
 => CACHED [django 4/5] RUN pip install --no-cache-dir -r /django/require  0.0s
 => CACHED [django 5/5] RUN chmod +x /django/django_start.sh               0.0s
 => => writing image sha256:1c88f1227753b08cf994c4e61d5cdcf97d68f260c99ad  0.0s
 => => naming to docker.io/library/server-django                           0.0s

host:~/workspace/flownexus/server$ docker compose up
[+] Running 2/0
 ✔ Container server-leshan-1  Created                                      0.0s
 ✔ Container server-django-1  Created                                      0.0s
Attaching to django-1, leshan-1
[..]
django-1  | Starting development server at http://0.0.0.0:8000/
leshan-1  | [main] INFO org.eclipse.leshan.server.LeshanServer - CoAP over UDP endpoint based on Californium library available at coap://0.0.0.0:5683.
leshan-1  | LeshanServer started
^CGracefully stopping... (press Ctrl+C again to force)
[+] Stopping 2/2
 ✔ Container server-django-1  Stopped                                     10.3s
 ✔ Container server-leshan-1  Stopped                                     10.5s

Setup a Virtual Server#

flownexus can be deployed to a virtual server. This chapter explains a basic setup of a virtual server with a domain name. A requirement is to have a Linux server and a domain name. The domain name must point to the server, e.g. via a A/AAAA-Record.

The setup has been tested with a Debian 12 server with a 1C/1GB RAM configuration.

CA and self-signed Certificate#

Leshan and the HTTPs download server for firware binaries use self-signed certificates. The flownexus frontend uses certificates that have been issued via Let’s Encrypt. The following commands create a self-signed certificate for the domain flownexus.org:

Create a Certificate Authority (CA)

  1. Generate the CA Private Key:

    openssl ecparam -genkey -name prime256v1 -out ca.key

  2. Create a Self-Signed CA Certificate with 100 years validity:

    openssl req -new -x509 -key ca.key -out ca.crt -days 36500 -subj "/CN=flownexus.org"

Create a Server Certificate Signed by the CA

  1. Generate the Server Private Key

    openssl ecparam -genkey -name prime256v1 -out fw_flownexus_org.key

  2. Generate a Certificate Signing Request (CSR)

    openssl req -new -key fw_flownexus_org.key -out fw_flownexus_org.csr -subj "/CN=fw.flownexus.org"

  3. Generate the Server Certificate Signed by the CA

    openssl x509 -req -in fw_flownexus_org.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out fw_flownexus_org.crt -days 3650 -sha256

Generated Files

  • ca.key: CA private key

  • ca.crt: CA certificate

  • fw_flownexus_org.key: Server private key

  • fw_flownexus_org.csr: Server certificate signing request

  • fw_flownexus_org.crt: Server certificate signed by the CA

Copy the server certificate and key to the server and store then in /etc/nginx/ssl/. Keep the CA certificate and key in a secure location.

Nginx as Reverse Proxy#

The following steps show how to configure Nginx as a reverse proxy for the flownexus server. The Nginx server listens on port 443 and forwards the requests to the Django server running on port 8000:

Nginx setup, create Let’s Encrypt certificate#
# Update Sytem, install required packages and enable the firewall
vserver:~/ apt update
vserver:~/ apt install git docker docker-compose nginx certbot python3-certbot-nginx

# Generate a certificate with letsencrypt:
vserver:~/ certbot --nginx -d flownexus.org -d www.flownexus.org
vserver:~/ Create nginx config at /etc/nginx/sites-available/flownexus (see example below)
Nginx config for the Frontend /etc/nginx/sites-available/flownexus.org#
 1server {
 2        listen 443 ssl http2;
 3        listen [::]:443 ssl http2;
 4        server_name flownexus.org www.flownexus.org;
 5
 6        error_log /var/log/nginx/flownexus.org.error.log;
 7        access_log /var/log/nginx/flownexus.org.access.log;
 8        ssl_certificate /etc/letsencrypt/live/flownexus.org/fullchain.pem; # managed by Certbot
 9        ssl_certificate_key /etc/letsencrypt/live/flownexus.org/privkey.pem; # managed by Certbot
10
11        location / {
12                proxy_pass http://127.0.0.1:8000/;
13                proxy_set_header Host $http_host;
14                proxy_set_header X-Real-IP $remote_addr;
15                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
16                proxy_set_header X-Forwarded-Proto $scheme;
17                proxy_set_header X-Frame-Options SAMEORIGIN;
18        }
19}
20
21server {
22        listen 80;
23        listen [::]:80;
24        server_name flownexus.org www.flownexus.org;
25
26        # Redirect all HTTP requests to HTTPs
27        return 301 https://$host$request_uri;
28}
Nginx config for the https dl Server /etc/nginx/sites-available/fw.flownexus.org#
 1server {
 2        listen 443 ssl;
 3        listen [::]:443 ssl http2;
 4        server_name fw.flownexus.org;
 5
 6        ssl_certificate /etc/nginx/ssl/fw_flownexus_org.crt;
 7        ssl_certificate_key /etc/nginx/ssl/fw_flownexus_org.key;
 8
 9        location /binaries {
10                root /var/www/flownexus/;
11                # Debug option: uncomment to list files
12                # autoindex on;
13        }
14}
15
16server {
17     listen 80;
18     server_name fw.flownexus.org;
19
20     # Redirect all HTTP requests to HTTPS
21     return 301 https://$host$request_uri;
22}

After creating the Nginx config, activate the config and restart the Nginx.

Activate the Nginx config#
# Activate the Nginx config:
vserver:~/ ln -s /etc/nginx/sites-available/flownexus.org /etc/nginx/sites-enabled/
vserver:~/ ln -s /etc/nginx/sites-available/fw.flownexus.org /etc/nginx/sites-enabled/

# Test the Nginx config:
vserver:~/ nginx -t

# Restart Nginx:
vserver:~/ systemctl restart nginx

Test the Download Server#

If you have setup an A/AAAA-Record, you can now test the download server. It is available at https://fw.flownexus.org/binaries. If you uncomment the option autoindex on; in the Nginx config, you can list the files in the directory.

_images/https_server_demo.png

Start flownexus#

After the setup, download flownexus and start it with using docker compose in detached mode. Make sure to change the DEPLOY_SECRET_KEY and DEBUG flag in the settings.py file before deploying.:

Start flownexus with docker compose#
vserver:~/ git clone https://github.com/jonas-rem/flownexus.git
# Change the DEPLOY_SECRET_KEY and DEBUG flag in the settings.py file
vserver:~/flownexus/server$ docker-compose up -d

flownexus is now available at https://flownexus.org. The server is running in a Docker container and the Nginx server is used as a reverse proxy.

Security Considerations#

Consider enabling the firewall and only keep required ports open:

  • Port 80, TCP: HTTP

  • Port 443, TCP: HTTPS

  • Port 22, TCP: SSH

  • Port 5683, UDP: CoAP

Warning

flownexus is not production ready. This server setup is only intended for testing purposes.

The current flownexus configuration uses the default Django DEPLOY_SECRET_KEY and enables the DEBUG flag. This is a security risk and must be change before deploying.

Currently, the default django inbuild webserver is used. This is not recommended for production use. Consider using a production-ready webserver like Nginx or Apache.
